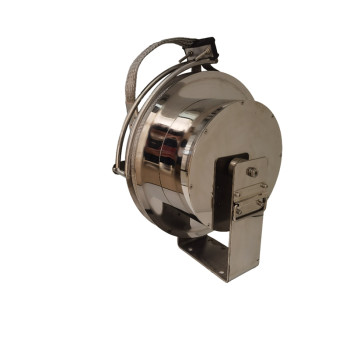

bypass conductor for external floating roof tanks

bypass conductor for external floating roof tanks

bypass conductor for external floating roof tanks
bypass conductor for external floating roof tanksbypass conductor for external floating roof tanksbypass conductor for external floating roof tanksbypass conductor for external floating roof tanksbypass conductor for external floating roof tanks
CategoriesRetractable Grounding Reel
BrandALPTEC Static Grounding Solutions Manufacturer
ModelRGR
Max. cable length24.4m
Housing materialSS316L
Spring materialSS301
CertificateATEX
Unit PriceUS $ 2052.3-2415.4 / piece
FOB portQingdao port or any port of China
Terms of PaymentL/C, Western Union, T/T, Paypal
Download
Update TimeOct 14,2024
Detail Information
1. Introduction

The bypass conductor for external floating roof tanks is designed to discharge the static electricity of floating roof storage tanks. It is used as the equipotential bonding between the floating roof and tank shell. The lightning current and bound charge will be effectively and rapidly dissipated to the earth upon a lightning strike. Compared with the conventional bypass conductor, it will effectively decrease the possibility of a lightning-induced fire, and make it more reliable and safe.

2. Advantages

1.316L stainless steels housing for corrosion resistance.

2.Pre-Tensioned: The RGR is pretensioned at the factory, so no on-site tensioning is required.

3.Overall mirror polishing, more beautiful, better corrosion resistance.

4. Braided strip outer stainless steel braiding protection, better tensile resistance.

5. China Patent No.: ZL 2016 2 1012793.X

6. Applicable Directive: 2014/34/EU

3. Supplied Parts

4. Recommended RGR Quantities
5. Installation Diagram
6.Comparison
7. Company Information
Our Retractable Grounding Reel had upgraded. There are several major advantages after the upgraded:



1. Replace the spring steel spring to 301 SS spring, which has a longer service life and better performance of corrosion resistance.
2. We optimize the structure and make it a fully sealed structure, without water inlet.
3. An additional bearing is added for smoother and more reliable operation.
4. High copper carbon brush is used for the flow guide, which has better flow guide performance.
5. Housing thickness increased from 1.2mm to 2.0mm, which is more stable and reliable.
6. A cable stop is added to prevent weakening of pretension.
