Multi-Channel Grounding Controller

Share
Categories	Static Grounding & Bonding Solutions
Brand	ALPTEC Static Grounding Solutions Manufacturer
Model	Earthing Pro MUL
Ground Resistance Threshold	≤ 10 Ω
Outputs	On-off signal,10A 250VAC/5A 30VDC
Operating Temperature	-20 °C to +60 °C
Response Time	< 1 second
Supply Voltage	85~250 V / 24~48 V
Input Current	90mA
Certification	II2(1) G Ex db ia[ia Ga]IIC T6 Gb
Certification	II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Terms of Payment	L/C, Western Union, T/T, Paypal
Download
Update Time	Feb 6,2026

Contact Now

Favorites

Detail Information

Multi-Channel Grounding Controller Earthing Pro MUL

1. Introduction

Earthing Pro MUL is a multi-channel static grounding and monitoring system designed for complex installations where multiple grounding points must be supervised simultaneously.

Supporting up to 16 independent channels, the system provides centralized monitoring, clear status indication, and enhanced electrostatic safety for large-scale industrial operations.

2.Why Multi-Channel Monitoring?

1.Large facilities often have multiple simultaneous operations .

2.Individual controllers increase system complexity .

3.Centralized monitoring improves safety oversight .

4.Multi-channel systems reduce hardware and wiring redundancy.

3.How Earthing Pro MUL Works？

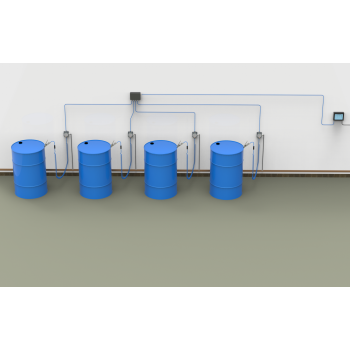

1.Each grounding clamp is connected to an individual channel .

2.Earthing Pro MUL continuously monitors all channels .

3.Grounding status of each channel is displayed centrally .

4.Alarms are triggered if grounding is lost on any channel .

5.System outputs can interface with external control systems.

4.Key Features
